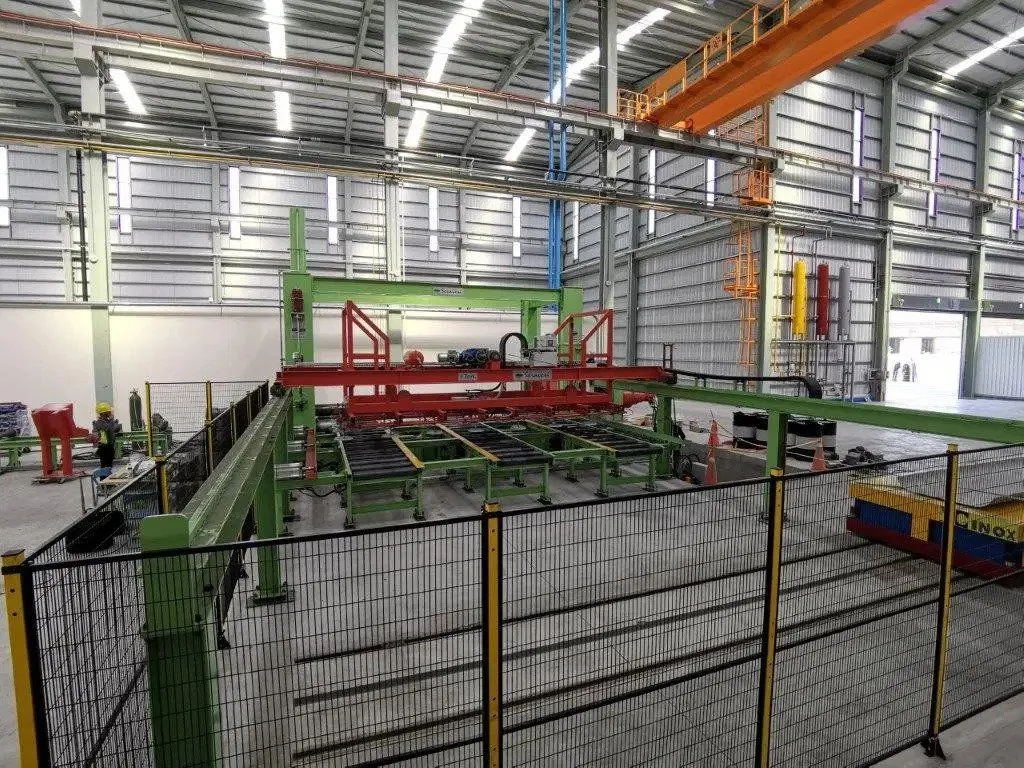

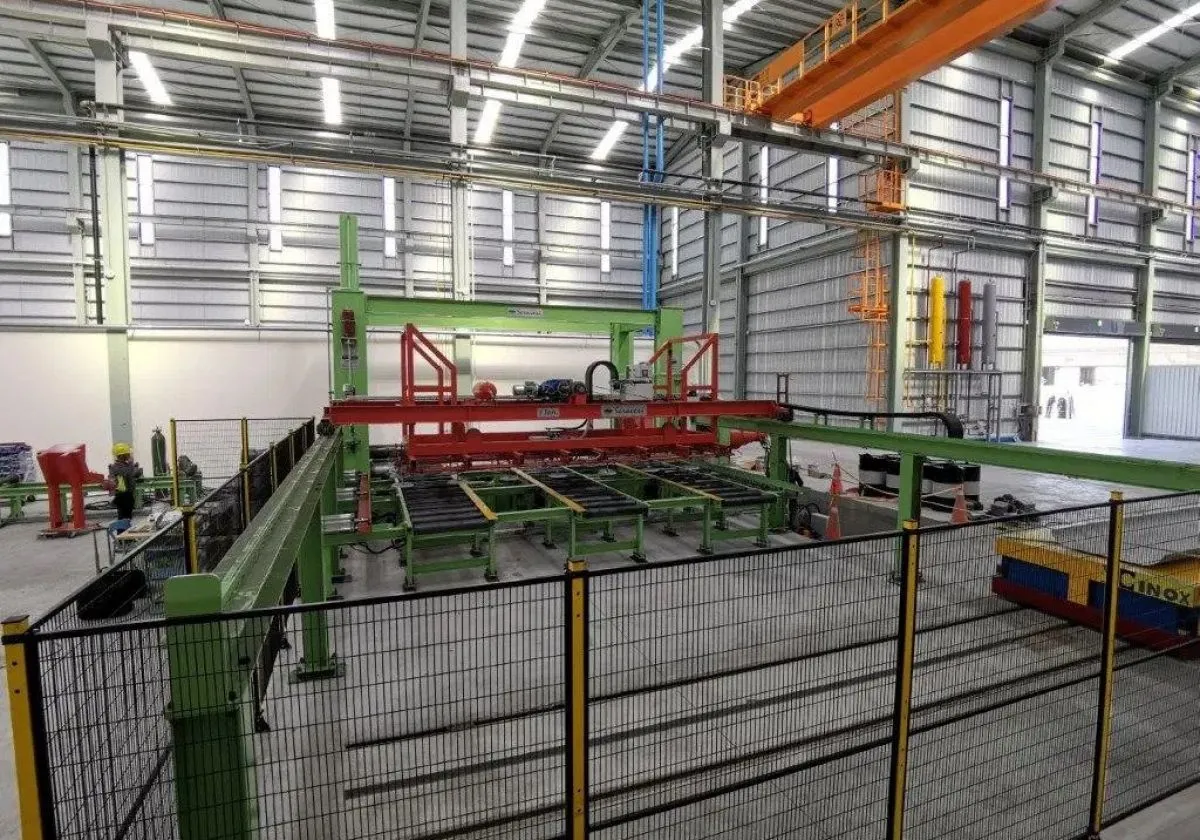

We have installed a new 20’ Pipes Production System in Asia.
The plant is composed by:
- Automatic trolley that brings the sheet pack on the loading area
- Automatic loading system with vacuum devices
- Motorized sheet feeding system
- 20’ plate roll with top roll pre tensioned
- Automatic ejection system of the finished pipe
- Roller receiver for the finished pipe

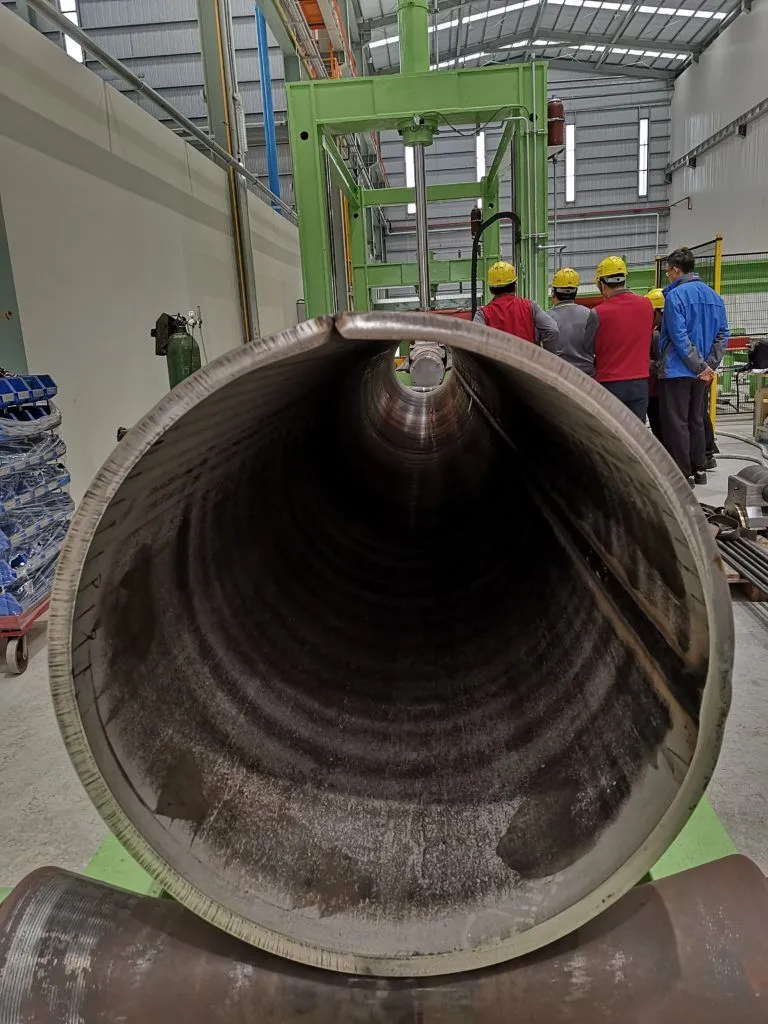

This system roll plates up to 7/8” (22 mm) thickness with a width of 20’ (6000 mm), on a pipe ID of 20” (508 mm). Material is Stainless Steel 50000 Psi.
For massive production is possible to have the port bending amchine after the plate roll
Send a mail to seravesi.sales@1960seravesi.com to have your offer.
